Natural Water Retention Measures: Are Leaky Dams Worth the Investment?

As a landowner, observing water rapidly exiting your property during heavy rainfall is a familiar concern. This runoff contributes to downstream flood risk and represents a loss of a valuable resource. The conversation around Natural Flood Management (NFM) often presents leaky dams and retention ponds as a straightforward solution. While these interventions are indeed effective, their true value lies not in simply obstructing water, but in a carefully considered, compliant, and ecologically integrated approach to landscape-scale water stewardship.

Many discussions focus on the simple act of “slowing the flow,” but overlook the critical nuances that determine whether a project is a successful, grant-eligible investment or a costly compliance failure. The key is to move beyond the idea of basic construction and embrace the principles of hydrological attenuation and ecological engineering. This requires a clear understanding of not only how to build these features, but why they work, what legal frameworks govern them, and how they can be designed to deliver multiple benefits, from flood mitigation to biodiversity enhancement.

This guide provides a procedural overview for landowners considering such an investment. It will examine the scientific justification for these measures, provide practical guidance on low-cost construction, clarify the crucial differences between feature types, and detail the essential compliance steps with the Environment Agency (EA). Ultimately, it will demonstrate how to frame these interventions as justifiable assets for both your holding and the wider catchment.

Why Slowing Water Flow Reduces Peak Flood Levels Downstream?

The primary function of Natural Flood Management (NFM) features like leaky dams is hydrological attenuation. During a storm event, a large volume of water runs off the land and enters watercourses in a short period, creating a “peak” in the river’s flow, known as a flood hydrograph. This rapid surge is what overwhelms downstream defences. By strategically placing obstructions, we intentionally slow the water’s journey from the upper catchment to the main river channel. This doesn’t reduce the total volume of water, but it desynchronises the flows, spreading the peak out over a longer duration.

The effectiveness of this approach is well-documented. A network of leaky dams can achieve a significant impact on flood dynamics. In fact, research consistently demonstrates a 20-40% reduction in peak flood flows in small catchments where these measures are implemented. This reduction is achieved by temporarily storing water in the channel and on the adjacent floodplain. Each structure contributes to the cumulative effect, holding back a certain volume that would otherwise be contributing to the flood peak.

The storage capacity can be substantial. Even small, simple structures add up. Studies indicate that a series of well-placed leaky dams can temporarily store between 1 to 5 cubic metres of water per linear metre of stream length. For a 100-metre stretch of a small gully or ditch, this equates to holding back up to 50,000 litres of water, delaying its entry into the main river system and providing crucial relief to communities downstream. This cost-benefit justification is often a key component of grant applications.

How to Build a Leaky Dam Using On-Farm Materials for Under £50?

The financial viability of NFM is a primary concern for any landowner. The title’s claim of constructing a leaky dam for under £50 is entirely feasible, provided the approach leverages existing on-farm resources, prioritising material cost-effectiveness over imported materials and extensive labour. The core principle is to use low-value or no-value timber sourced directly from the property, such as fallen trees from winter storms, timber from essential forestry thinning, or brash and coppiced wood from woodland management.

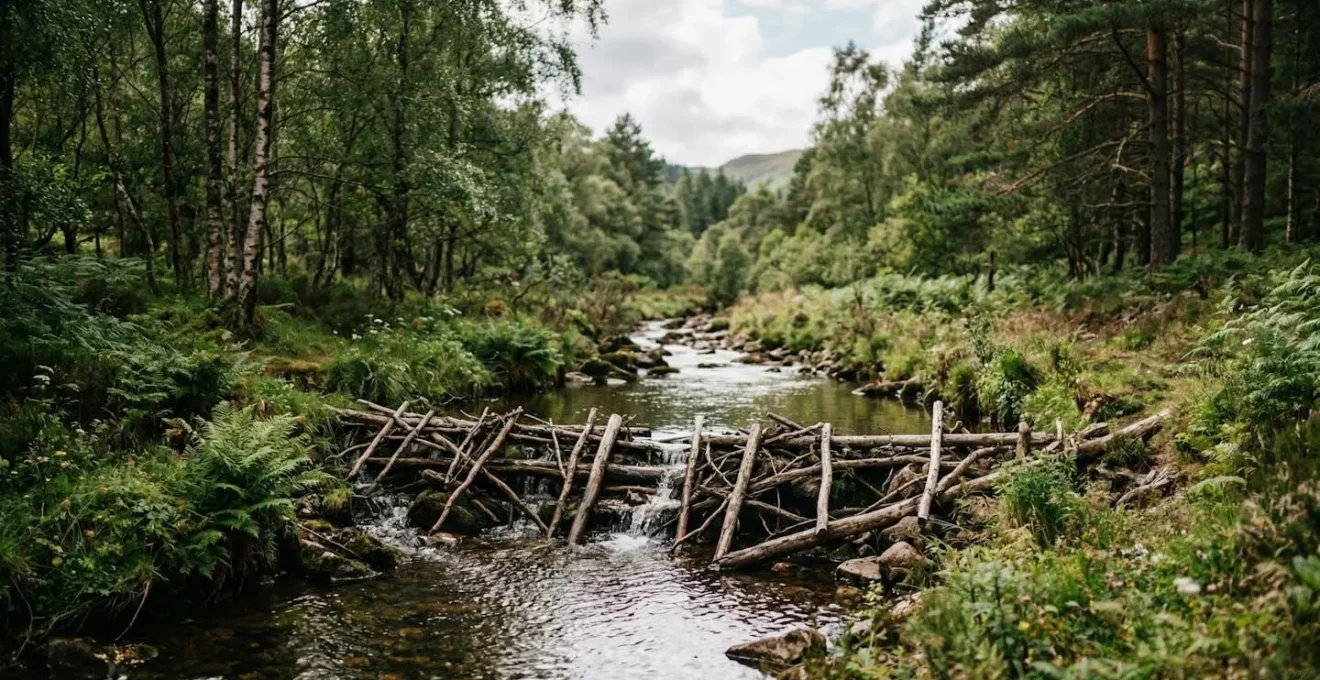

A leaky dam is not an impermeable barrier; its purpose is to be porous. The structure should slow water, not stop it entirely. A simple and effective design involves driving sturdy wooden posts or stakes into the stream bed and banks, then weaving or stacking logs, branches, and brash against them on the upstream side. The key is to anchor the main structural logs securely into the banks to prevent them from being washed away. The structure should span the channel but not be significantly higher than the bankfull level, allowing high flows to pass over the top without causing erosion.

The “cost” is primarily in time and machinery use, such as a post-knocker or mini-digger for positioning larger logs. By utilising materials that would otherwise be left to decay or be processed into firewood, the material cost can be reduced to virtually zero. The nominal £50 budget accounts for fuel, fixings if absolutely necessary, and incidentals. This cost-benefit justification is critical when planning a series of structures, demonstrating a high return on investment in terms of flood management for minimal cash outlay.

Field Ponds or Swales: Which Capture More Runoff on Sloping Land?

When planning water retention on sloping ground, landowners often face a choice between two primary features: field ponds and swales. The optimal choice depends entirely on the primary objective and the specific site topography. They are not interchangeable; one is designed for permanent storage, while the other is for temporary capture and infiltration. A direct comparison of their characteristics is essential for effective project design.

The following table, based on an analysis of excavation and function, outlines the key differences:

For maximizing the capture of surface runoff on a slope, a swale is the more appropriate tool. It acts as a long, linear interception trap, slowing water and encouraging it to soak into the ground, thus recharging groundwater. A pond, by contrast, is a destination; it captures and holds water in one location. However, the most sophisticated approach often involves a hybrid system.

The Consent Mistake with the Environment Agency That Could Fines You

Navigating the regulatory landscape is arguably the most critical phase of any in-stream or water retention project. A failure to secure the correct consent is not a minor administrative error; it is a breach of environmental law that can result in substantial fines, enforcement notices to remove the works at your own cost, and ineligibility for future grants. The most common and costly mistake is failing to correctly identify the classification of the watercourse in question.

The regulatory authority depends entirely on this classification. As the UK Environment Agency explicitly states in its guidance, a formal process is mandatory. As they note in their guidance, ” consent is required from the Environment Agency for works in, over or under a Main River“. For any other watercourse, termed an ‘ordinary watercourse’, consent is typically required from your Lead Local Flood Authority (LLFA), which is usually the county council or unitary authority.

Assuming a small ditch is ‘ordinary’ without official confirmation can lead to undertaking works on a ‘main river’ without an EA permit, a serious offence. To avoid this, a rigorous, documented approach is essential. The following framework outlines the minimum steps required to ensure compliance.

How to Design Retention Ponds to Double as Wildlife Habitats?

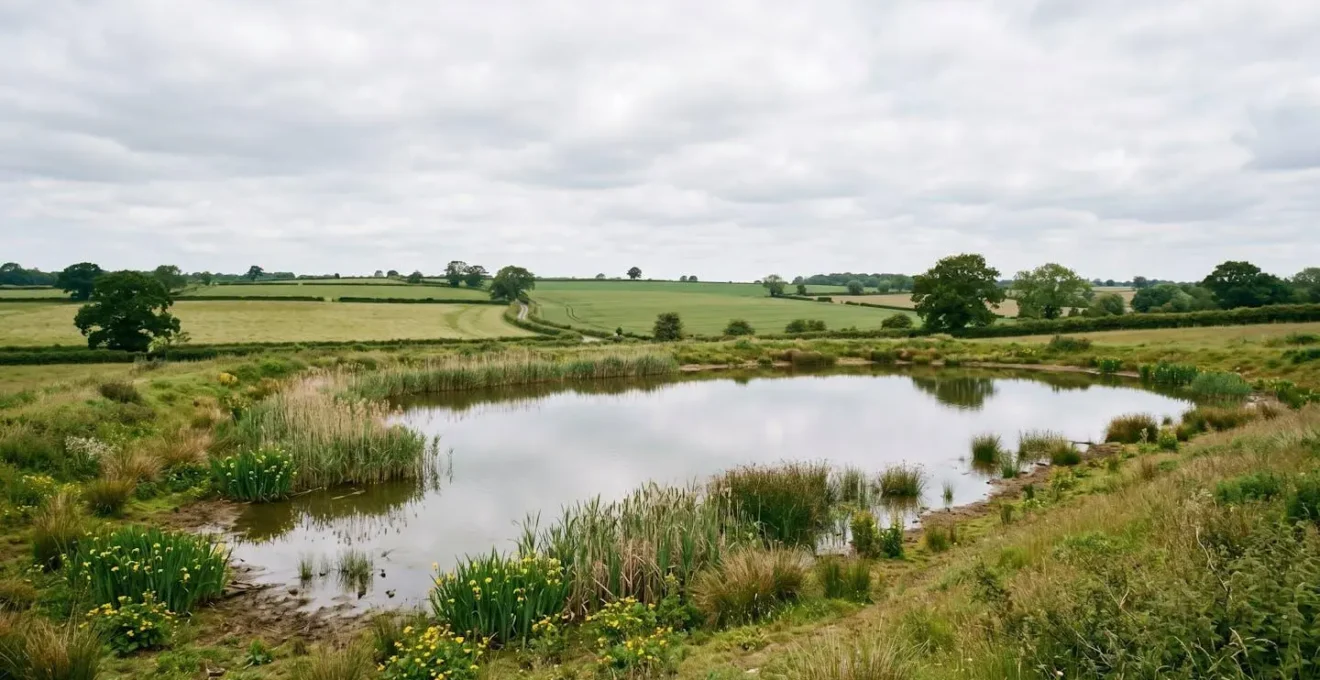

A retention pond constructed for NFM purposes should never be just a hole in the ground. With thoughtful design, it can be transformed from a single-purpose utility into a valuable ecological asset, creating a biodiversity hotspot that enhances the environmental credentials of your holding. This process of ecological engineering adds significant value and can be a key factor in securing grant funding, particularly schemes focused on biodiversity net gain. The goal is to create a variety of niches that can support a wide range of flora and fauna.

The design must move beyond a simple, steep-sided basin. A truly effective wildlife pond incorporates varied topography, gentle slopes, and strategic planting. This not only benefits wildlife but also improves the pond’s safety and long-term stability. The ideal outcome is a pond that looks like a natural feature of the landscape, with vegetated banks and clear, healthy water.

A structured, tiered approach to habitat creation can guide the design and construction process, ensuring key features are incorporated from the outset:

• Bronze Level – Gentle Access Slopes: The most basic requirement for wildlife is safe access and egress. Design side slopes at a shallow 3:1 ratio or flatter. This allows animals like amphibians, hedgehogs, and birds to safely reach the water and, crucially, to get out again. At least one “beach” area or gently sloping exit point is essential.
• Silver Level – Varied Depth Zones: A uniform depth supports limited life. By cutting ledges or shelves during excavation, you create different depth zones. Shallow margins (1-3.5 feet) warm up quickly and are ideal for spawning amphibians, invertebrates, and wading birds. Deeper central areas provide a refuge for fish and other aquatic life from predators and temperature extremes.
• Gold Level – Biodiversity Corridor Connection: An isolated pond has limited value. The true benefit comes from integrating it into the wider landscape. Plant a fringe of native, emergent vegetation (like Flag Iris or Water Mint) around the perimeter. These plants provide cover, nesting sites, and help filter nutrients. Connect this vegetated buffer to existing hedgerows or field margins to create a continuous corridor for wildlife movement.

How Wide Should Your Buffer Be to Stop Phosphate Runoff Effectively?

The creation of buffer strips along watercourses is a cornerstone of catchment sensitive farming. These vegetated zones act as a crucial line of defence, intercepting runoff from agricultural land before it can enter a river or stream. Their primary functions are to trap sediment, absorb nutrients, and slow surface flow. A key nutrient of concern is phosphorus, which, when it enters water bodies, can lead to eutrophication and a severe decline in water quality. The effectiveness of a buffer strip is directly related to its width.

While specific grant scheme rules may dictate a minimum width (e.g., 6 metres under certain Countryside Stewardship options), the optimal width from a scientific perspective depends on factors like slope, soil type, and the level of nutrient loading. A wider buffer provides a greater “residence time” for the runoff water, allowing more opportunity for sediment to settle and for plants to uptake nutrients like phosphate and nitrate. The vegetation itself also increases surface roughness, physically slowing the water down and promoting infiltration.

Quantifying the precise effectiveness can be complex, but established models provide a reliable benchmark for their performance. For instance, in the context of water-quality swales, which function similarly to buffer strips, the Center for Watershed Protection estimates a 20 to 40 percent phosphorus removal rate. The same models indicate a 25 to 35 percent removal rate for nitrogen. Therefore, a well-maintained, appropriately-sited buffer strip of adequate width is not merely a regulatory requirement but a proven and effective tool for mitigating diffuse pollution from agricultural sources.

Why Your Drains Are Running Clear While Water Stands on the Surface?

It is a common and frustrating observation in poorly-draining fields: after heavy rain, land drains may be discharging clear water, yet significant ponding remains on the surface. This apparent paradox indicates that the problem is not with the drains themselves, but with the soil’s ability to transmit water to them. The issue is one of infiltration and permeability, often caused by soil compaction and surface sealing.

Over time, heavy machinery traffic and livestock poaching can compact the topsoil, crushing the macropores and creating a dense, relatively impermeable layer. When intense rain falls, the water cannot soak through this compacted layer quickly enough to reach the drains below. Instead, it moves as surface flow or sits in pools on the surface, leading to waterlogging, anaerobic conditions, and reduced crop or grass productivity. The drains run clear simply because the bulk of the surface water is not reaching them.

This is where upstream NFM interventions become relevant, even within a single field. The problem is not a lack of drainage capacity, but an excess of surface water velocity and a lack of infiltration time. Research into NFM effectiveness demonstrates this principle clearly.

How to Fence Watercourses to Avoid EA Fines Without Losing Grazing?

Fencing off watercourses is a mandatory requirement in many agri-environment schemes and is strongly enforced by the Environment Agency to protect water quality. The primary purpose is to prevent livestock from directly accessing the water, which causes bank erosion (poaching), direct fouling of the water, and increased nutrient loading from faeces and urine. While necessary for compliance and environmental protection, this can be perceived by landowners as a loss of valuable grazing area and access to water for stock.

However, a strategic approach can turn this regulatory requirement into a net benefit, maintaining animal welfare and even creating new opportunities on the holding. This involves moving from simple exclusion to smart riparian management. The key is to see the fenced-off area not as lost land, but as a multifunctional buffer zone.

A comprehensive strategy for compliant and productive riparian fencing involves several steps:

1. Design Exclusion Fencing: Install robust fencing at a sufficient distance from the top of the riverbank (a minimum of 2-3 metres is advisable) to create a permanent buffer. This is the core step to prevent direct livestock access and avoid potential fines for water pollution.
2. Establish Controlled Water Access Points: Instead of allowing full access, install a drinking trough system away from the watercourse. This can be gravity-fed from the river (subject to abstraction licenses) or, more commonly, supplied by a solar-powered pump or mains water. This provides livestock with clean drinking water and prevents them from needing to enter the river.
3. Incorporate Animal Escape Routes: For any open water body like a dam or pond within the fenced area, it is critical to include at least one gentle slope or ramp. This allows any animal that accidentally falls in to escape safely, preventing drowning and subsequent nutrient pollution from a decomposing carcass.
4. Convert Buffer Zones into Productive Assets: The fenced-off riparian area is now a management opportunity. It can be planted with native trees to further stabilise the bank (a plus for grant applications), used to grow biomass crops like willow for bedding material, or managed as a wildflower meadow to support pollinators and enhance the farm’s nature-friendly branding.

To implement these measures effectively, the next logical step is to undertake a formal assessment of your own property’s watercourses, soil types, and topography to identify the most suitable locations for intervention, forming the basis of a robust NFM plan for grant application.
